Application:
Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools... Solar and wind power system, RV, caravan... Back-up system and UPS... Torch LED light emergency light.Product Specification Actual capacity:132-135Ah
Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools... Solar and wind power system, RV, caravan... Back-up system and UPS... Torch LED light emergency light.Product Specification Actual capacity:132-135Ah

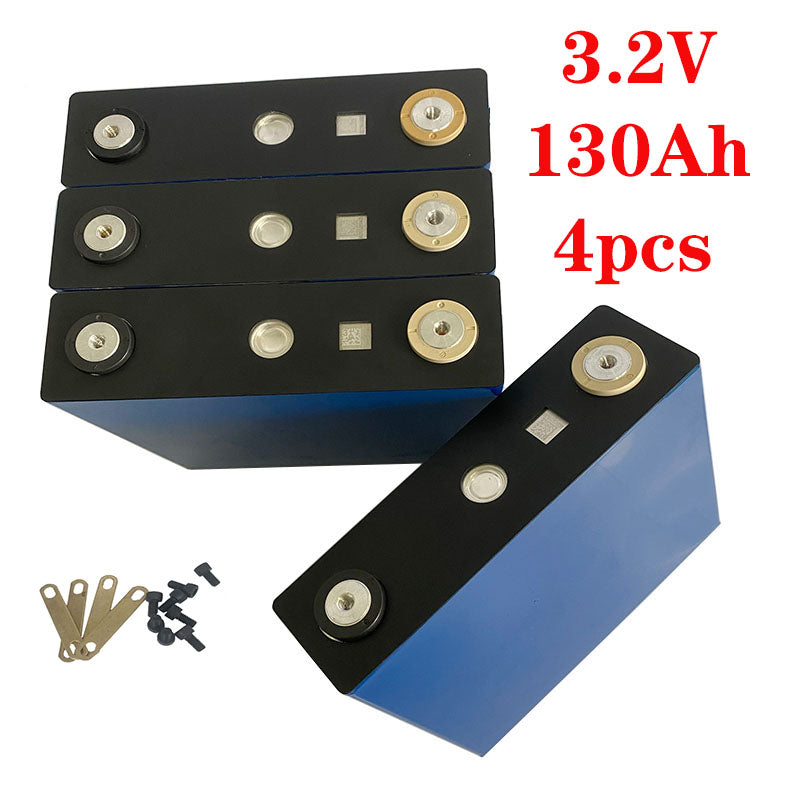

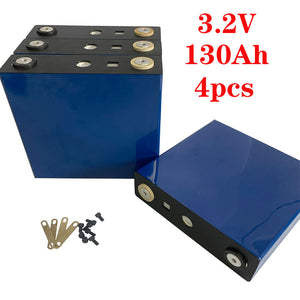

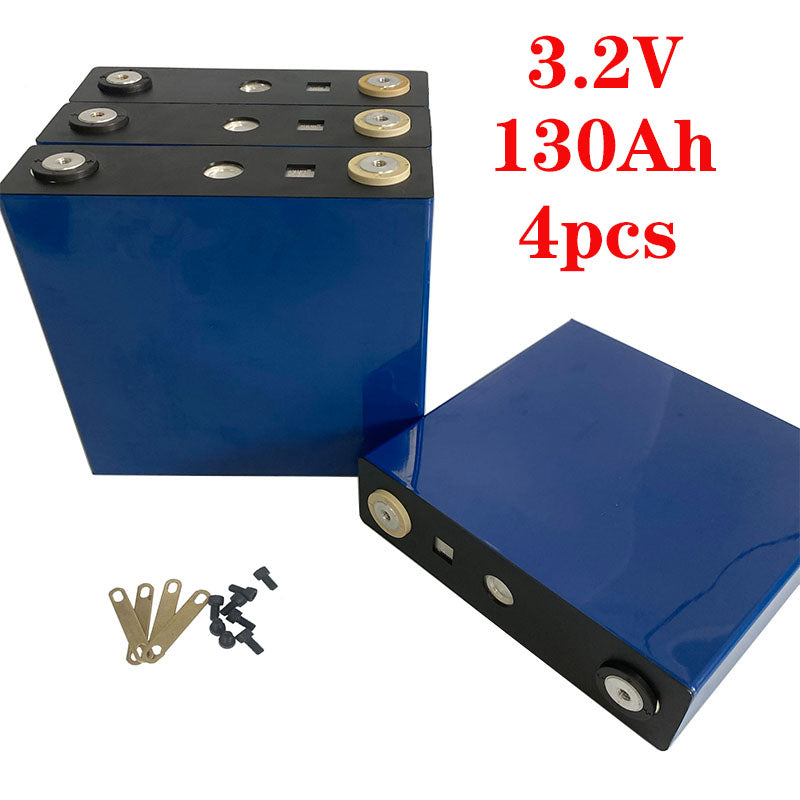

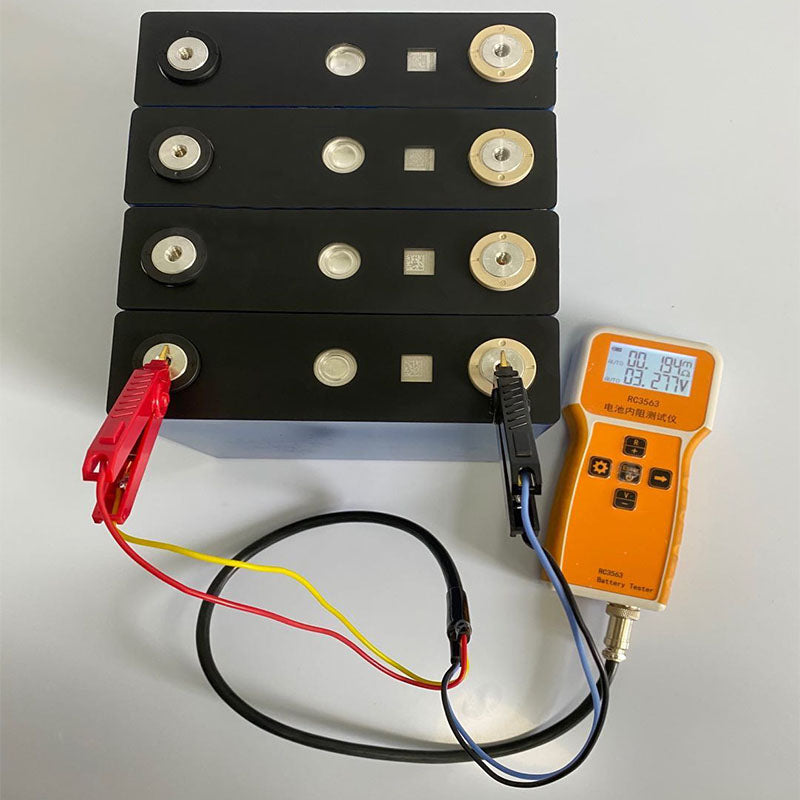

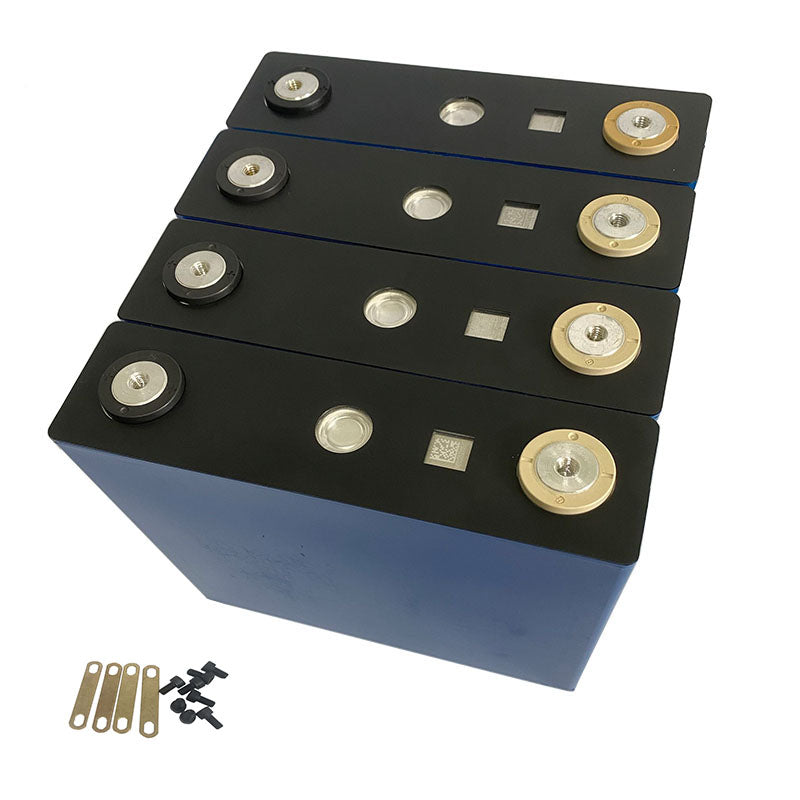

Product Name: Lithium iron phosphate cell Shell Material:Aluminium Rated capacity:130Ah Minimum capacity:130Ah Internal impedance:0.2~0.5mΩ Nominal voltage:3.2V Dimensions(L*W*H):174*48*175mm Weight:2.85±0.10kg Recommend Constant Current:130A(1C) End-of-Discharge Voltage:2.5V Recommend Constant Current:65A(0.5C) Charge Voltage:3.65V Maximum Pulse Discharging Current:360A Charge Voltage:3.65V Max Continuous Discharge Current:130A(1C) Cycle life (80%DOD):4000 cycles Charging Temperature:-5~60°C Discharging Temperature:-30~60°C No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped. Customers should configure a BMS which is used for strictly monitoring, management and protection. Properly connect the terminals of positive and negative of the batteries. The reversal charging is forbidden. If the polarity is reversed, the battery will be damaged and safety problem may occur. If the batteries kept unused for a long time, it should be charged and discharged at the standard model every six months. Store the battery in the state of 30% SOC (voltage scope: 3.275V~3.305V). Appearance Without break, distortion, contamination, leakage.
